Thermal Imaging for Furnace
and Heater Inspections
Professional Thermal Imaging for High‑Temperature Systems

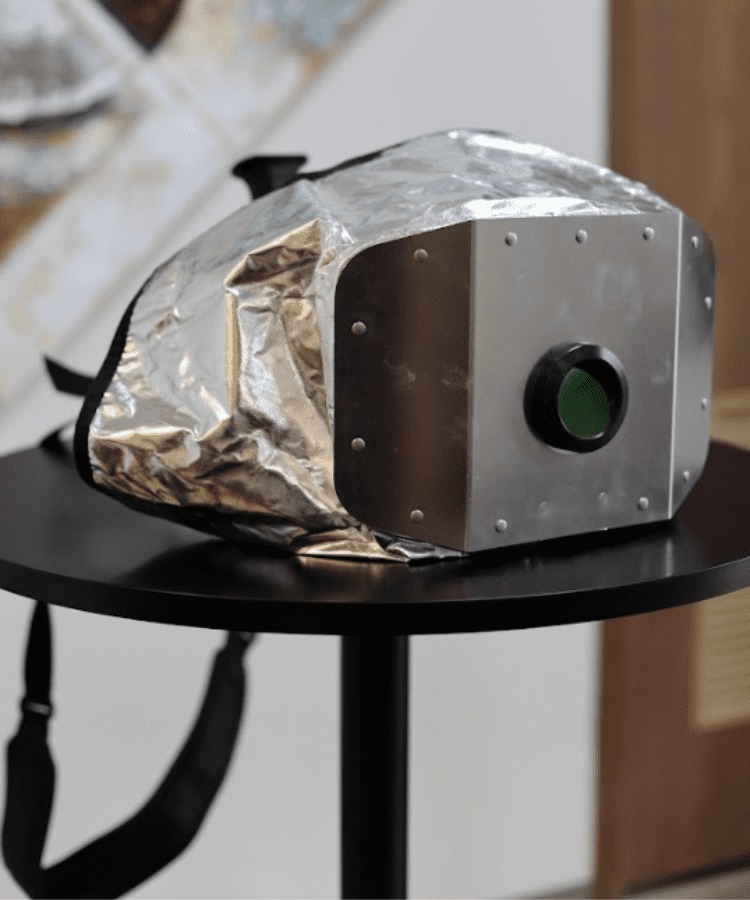

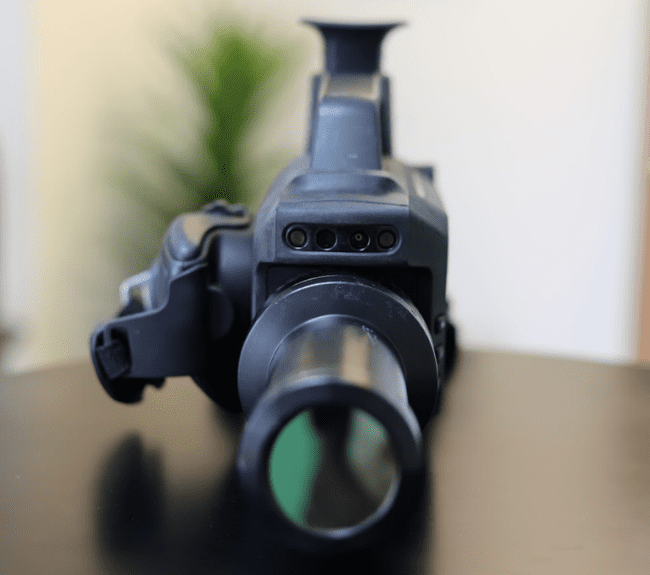

Thermal imaging is one of the most effective ways to inspect tubes inside operating furnaces and heaters without shutting equipment down. These systems run at extremely high temperatures, so measuring heat safely from a distance is essential. Flames and hot gases can distort normal infrared readings, but Flir G609 has the ability to look through the vapors and gases to see the hot oil heater tubes and capture accurate temperature data.
In oil refining and similar industries, crude oil is heated to more than 400°C as it moves through tubes inside a furnace. Keeping the tube surface at the correct temperature is critical. Even small temperature increases can shorten tube lifespan, while running the furnace too cool reduces efficiency. This is why it is important to measure the actual tube temperature, not just the surrounding heat.
Thermocouples can be attached to the tube surface, but they only measure the exact spot where they are installed. They cannot detect nearby hot spots or temperature variations. A Flir G609 furnace inspection camera solves this by viewing a larger area at once, making it easier to identify developing issues. Standard infrared cameras struggle to see through burner vapors and gases, but specialized thermal imaging systems with the correct spectral filters can capture accurate readings inside active furnaces.
Several conditions can cause temperature variations inside a furnace. Common issues include:
- Scaling on the outside of the tube, which forms when excessive heat creates an oxide layer on the metal surface. This layer can absorb heat, change the tube’s emissivity, and slow down how efficiently heat moves into the tube. Over time, these patches can grow unevenly, creating areas that look hotter in a thermal image even though they are actually blocking proper heat transfer.
- Coking on the inside of the tube, which happens when crude oil breaks down and carbon begins to build up. This buildup restricts flow and prevents the oil from carrying heat away from the tube wall, which leads to true overheating.
- Uneven burner performance, which can create temperature differences along the tube surface.
- Flow restrictions, which prevent the product inside the tube from carrying heat away evenly.
- Insulation issues, which can cause certain areas to heat or cool differently than intended.
For example, if most of a tube is operating around 400°C, a small area may spike to 450°C. These hot spots often appear on the side facing the burners, since that surface receives the most direct heat. In a thermal image, these areas stand out clearly, making them easy to identify and monitor.
Thermal imaging makes these variations easy to see, helping operators catch problems early and keep furnaces running safely and efficiently.
